Every AED, exactly where it should be.
GPS tracking for every AED in your program. Live location, movement alerts and up to ten years of battery on each unit, all managed in Track My AED.
Know where every AED is, every day.
Every unit reports its position, its movement and its battery, so the map in Track My AED is always current.
-
Finds units indoors and out
Satellite GPS is paired with Wi‑Fi and cell‑tower positioning, so an AED hanging in a hallway is as easy to locate as one in a parking lot. -
Motion and impact alerts
A three‑axis accelerometer notices knocks, tipping and rotation, and notifies you the moment a unit is disturbed. -

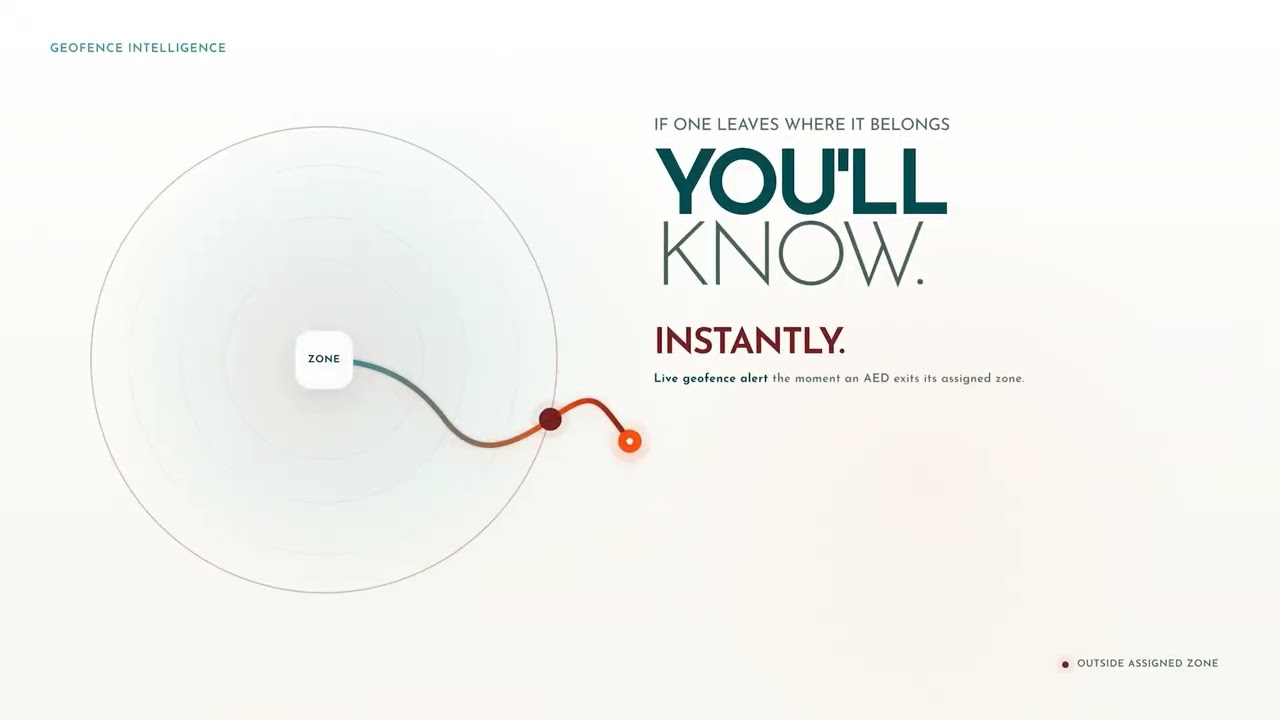

Geofence alerts
Draw a boundary around one unit or a whole fleet. If an AED leaves its zone, you hear about it straight away. -
Location history
A day‑by‑day trail of where each unit has been, so “where was it?” always has an answer. -
Up to 10 years on one set of batteries
Three user‑replaceable AA cells. In daily check‑in mode a unit can run for a decade without being touched. -
No IT setup
Every TAG arrives pre‑provisioned. Pull the magnet tab and it is live. No network credentials, no ticket. -
Rugged and weatherproof
An IP68‑rated nylon housing shrugs off dust, brief submersion and drops, and works from ‑22 °F to 140 °F. -
Encrypted end to end
AES‑256 from the device to the platform, and HTTPS for anything forwarded to third‑party systems. -
Deploys anywhere
LTE‑M and NB‑IoT on all major global bands. Any country, any facility, any time zone.
See TAG in action
A short walkthrough of the device, how it mounts, and what it reports back to Track My AED.
- Pull the magnet tab and it starts reporting
- Location, movement and battery on one map
- Alerts the moment a unit leaves its zone
Built for the places AEDs actually live
Technical specifications
The short version. The full four-page sheet is available below.
Connectivity
- Cellular
- Nordic nRF9160; LTE‑M (Cat‑M1) and NB‑IoT (Cat‑NB1/NB2) on all major global bands
- Bluetooth
- 5.2 gateway for nearby tags and sensors
- SIM
- Internal nano (4FF), pre‑provisioned
Location
- Satellite
- Sony CXD5612; GPS, GLONASS, Galileo and BeiDou; about 2 m accuracy
- Wi‑Fi
- Semtech LR1110 access‑point scanning; about 10–100 m in urban areas
- Cell tower
- Fallback when satellite and Wi‑Fi are unavailable; about 250 m–1 km
Power
- Batteries
- 3 × AA, user‑replaceable, included
- Life
- Daily updates about 10 years · movement‑based about 5 years · hourly about 4 years
- Sleep current
- Under 10 µA
Housing
- Size and weight
- 154 × 66 × 21 mm (6.1 × 2.6 × 0.83 in); 170 g with lithium AAs
- Rating
- Nylon, IP68; operating ‑22 °F to 140 °F
- Built in
- Internal cellular, GPS and Wi‑Fi antennas; three‑axis accelerometer; diagnostic LED; onboard flash; ambient temperature sensor
- Activation
- External magnet: remove to activate; doubles as tamper detection
Smart features
- Tracking
- Adaptive update rate, sleep mode when stationary, theft‑recovery mode
- Alerts
- Geofences, impact, tip, rotation, battery low and battery critical
- Management
- Remote configure, update and restart from Track My AED; API access
Security & warranty
- Encryption
- AES‑256 device to platform; HTTPS to third‑party systems
- Warranty
- Fully warranted for the duration of the subscription; exclusions apply
Location accuracy and battery life figures reflect ideal conditions. Installation, environment, update frequency, network coverage and accelerometer settings all affect real‑world results.
Take the details with you
Both PDFs are print‑ready and share‑ready.
TAG brochure
One‑page overview: the device, why customers choose it, and where it fits.
Download brochureTAG specification sheet
Connectivity, location, power, housing, smart features, security and warranty in full.
Download spec sheetReady to see it on your own fleet?
Request a demo of TAG and Track My AED, or ask us anything about tracking your AEDs.
TAG is powered by SAFE LIFE
